Scaime AK Single Point Load Cell
Upgrade your single-sensor weighing platform with the SCAIME AK load cell, engineered for dynamic weighing accuracy, off-center load compensation, and dependable performance in humid, demanding environments. Request a proven stainless steel solution built for fast, reliable platform scale integra-tion.
Overview

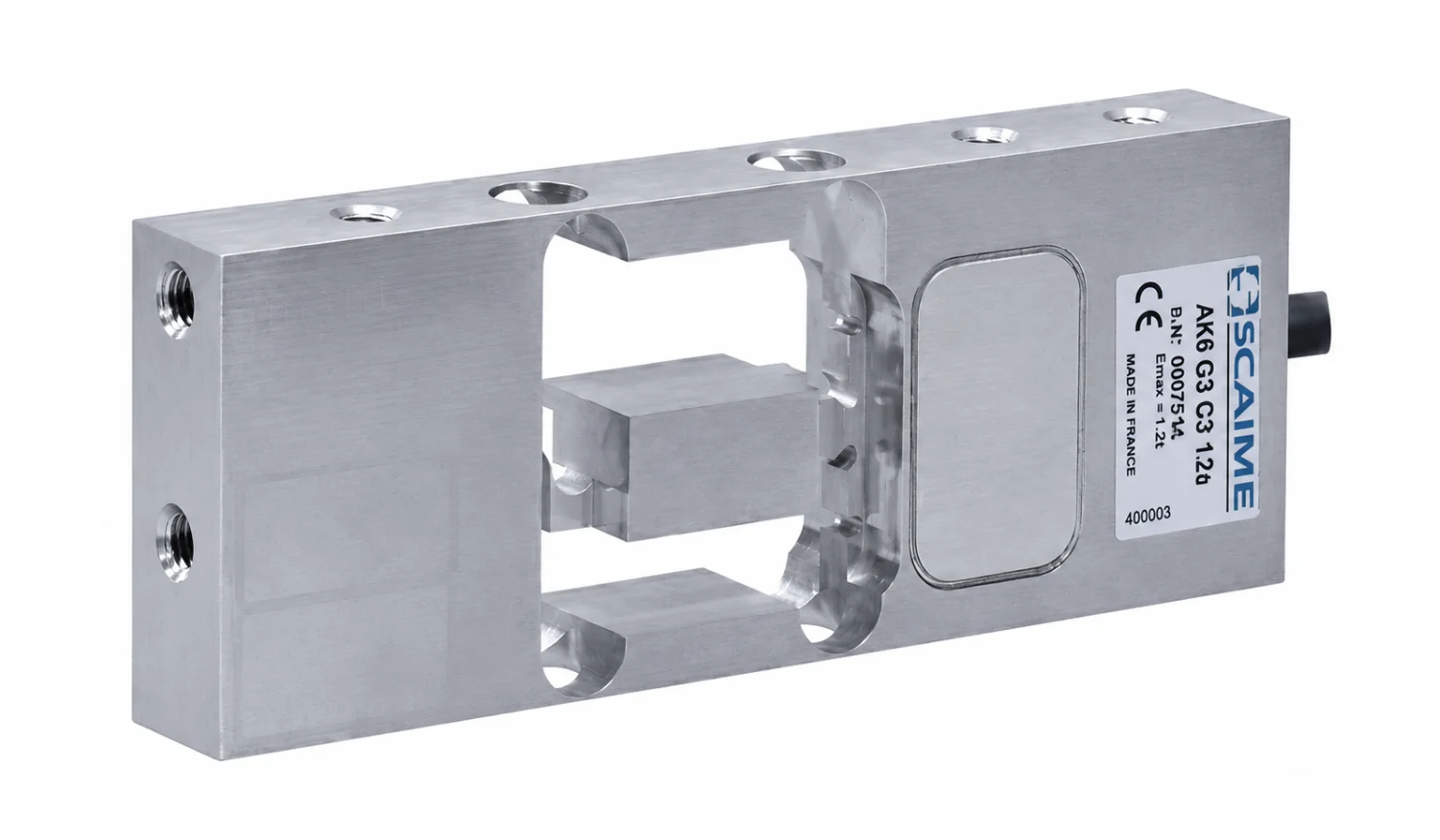

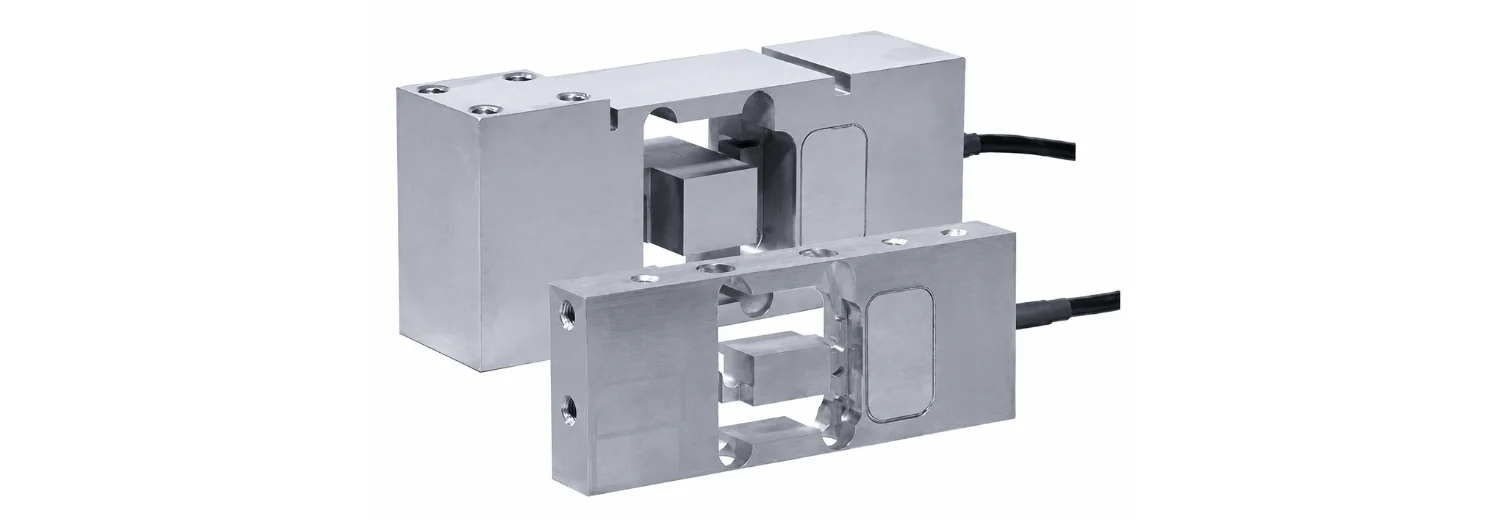

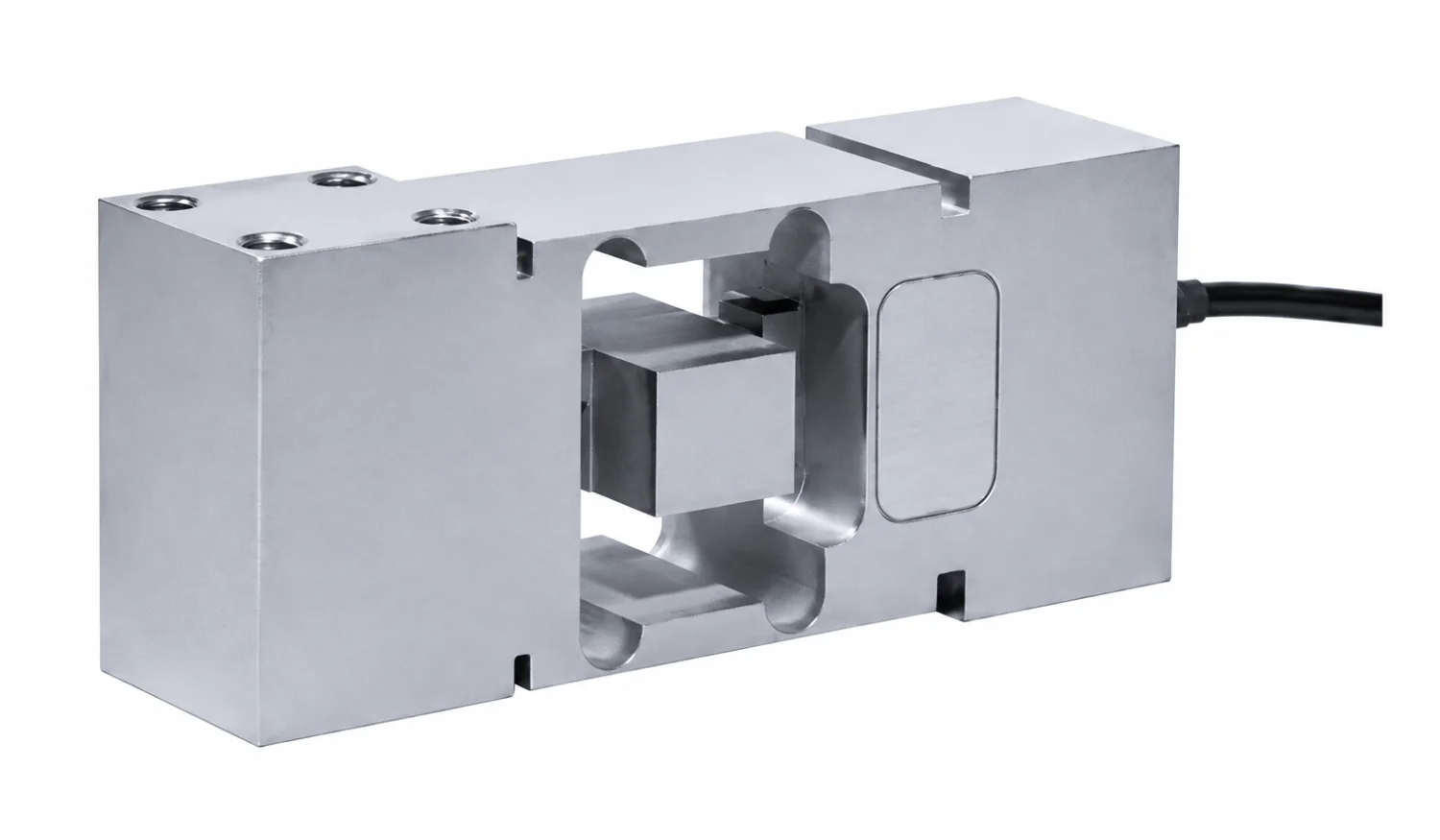

Stainless Steel Single Point Load Cell for Dynamic Weighing
The SCAIME AK is a stainless steel single point load cell designed for single-sensor weighing platforms, combining a fully welded, hermetically sealed IP68 construction with low deflection (under 0.25 mm) for stable, accurate dynamic weighing in humid environments.
With a capacity range from 6 kg to 300 kg, the AK is approved for legal-for-trade use up to 3,000 divisions under OIML R60 and up to 5,000 divisions under NTEP, making it a dependable choice for single-sensor scales, filling systems, and continuous dosing applications. Its Class C3 accuracy, compensated off-center loading, and side fixing holes for multi-head weighers help simplify installation on platform scales.
Built for hazardous area use, the AK is certified to ATEX 2014/34/EU and IECEx for gas and dust zones 0, 20, and 2, with an operating range of −20°C to +60°C in explosive atmospheres. Its stainless steel, welded, hermetically sealed body and IP68 rating keep the AK reliable across food, chemical, and manufacturing environments where washdown and moisture resistance matter.
ZFA proudly serves customers across Egypt, the UAE, Saudi Arabia, Sudan, Libya, Oman, Qatar, and the wider GCC region, delivering trusted weighing solutions where performance and reliability matter most.
Specifications
Technical specifications
Type
Single Point
Material
Stainless steel (measuring body), PVC cable sheath
Output
mV/V
Capacity range
6 kg – 300 kg (6, 12, 30, 60, 120, 300 kg)
Compensated temperature range
−10°C to +40°C
Service temperature range
: −20°C to +60°C
Protection class
IP68 (EN 60529)
Accuracy class
Class C3
Metrology standard
OIML R60 (up to 3,000 d)
Legal for trade
NTEP (up to 5,000 d)
Safe load limit
150% Emax
Cable length
3 m
Hazardous area
ATEX 2014/34/EU, IECEx
Key features
What makes the Scaime AK Single Point Load Cell.
Fully welded, hermetically sealed stainless steel construction to IP68, suited for humid environments
Optimized for dynamic weighing — deflection under 0.25 mm
Off-center load compensation for accurate readings across the platform
Approved up to 3,000 d OIML R60 and 5,000 d NTEP for legal-for-trade weighing
ATEX and IECEx certified for gas and dust hazardous zones (0/20, 20, 2)
Side fixing holes for use in multi-head weighers
Ideal for single-sensor scales, filling, batching, and continuous dosing applications
