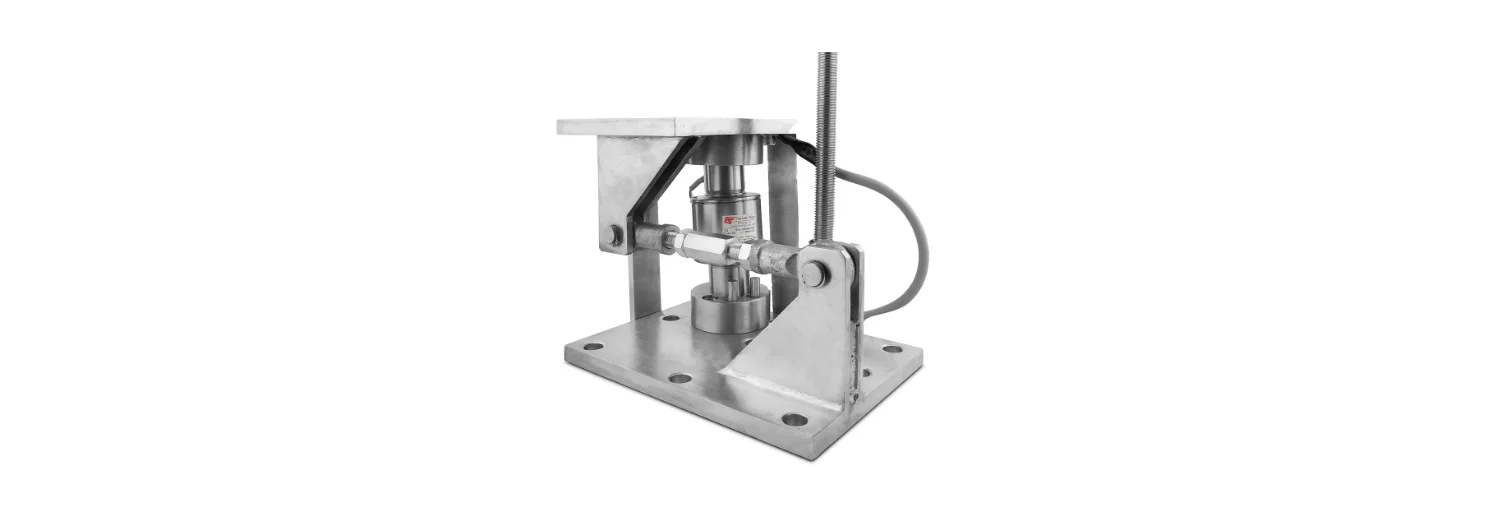

Thames Side LA34 Silo Weighing Assembly
Achieve accurate, dependable high-capacity weighing with the Thames Side LA34 silo weighing assembly. Combining the T34 compression load cell with a robust mounting module and built-in lightning protection, it is built for remote and legal-for-trade installations. Contact ZFA for your solution today.
Overview
Heavy-Duty Assembly for Silo, Tank, and Vessel Weighing
The Thames Side LA34 silo weighing assembly is a heavy-duty loading assembly combining the T34 compression load cell with a robust mounting module for high-capacity industrial weighing. Designed for silo weighing, tank weighing, and vessel weighing, it delivers accurate, stable, and repeatable measurement in demanding environments.
Built-in lightning protection makes the LA34 particularly suitable for remote installations and outdoor industrial sites where electrical surges and environmental conditions can affect system performance. Its robust construction ensures long-term reliability across harsh operating conditions and heavy-duty process applications.
Suitable for legal-for-trade applications, the LA34 supports compliant weighing operations in bulk material handling, chemical processing, food production, and manufacturing environments. It simplifies installation, reduces setup time, and extends the service life of the load cell.
ZFA delivers advanced industrial weighing solutions to major manufacturing hubs across the Middle East and North Africa. We proudly supply and support heavy-duty systems for clients in Egypt, the UAE, Saudi Arabia, Sudan, Libya, Oman, Qatar, and throughout the broader GCC region, ensuring your high-capacity installations operate seamlessly.
Specifications
Technical specifications
Type
Silo Weighing Assembly
Compatible load cell
T34 Compression (rocker column)
Capacity range
10,000 kg – 60,000 kg (legal-for-trade) / up to 1,000,000 kg (non-legal-for-trade)
Material
Stainless steel load cell / zinc plated steel mounting assembly
Protection class
IP68 / IP69K
Lightning protection
Integral surge arrestors (GDTs)
Overload / restraint
Lift-off prevention check rods + retention arm
Accuracy class
OIML C4 (4000 d)
Metrology standard
OIML R60
Hazardous area
ATEX approved (Zones 20, 21, 22 & Gas Zone 2)
Temperature range
Optional high-temperature version up to 150°C
Key features
What makes the Thames Side LA34 Silo Weighing Assembly.
Integrated T34 load cell with self-centring rocker column for accurate load introduction
Built-in lightning protection (GDTs) for safe operation in remote or exposed locations
Lift-off prevention check rods and retention arm for stability under wind loads
Allows thermal expansion and contraction via rocker column design
Fully welded, hermetically sealed stainless steel load cell construction
Supplied pre-assembled for fast and simple installation
Transport plate protects load cell from shock during handling and installation
Supplied with earthing cable to prevent damage during welding
Polyurethane cable provides superior resistance to UV, impact, and temperature variation
Optional Parylene coating for aggressive or corrosive environments
ATEX certified for hazardous areas without need for safety barriers (specific zones)

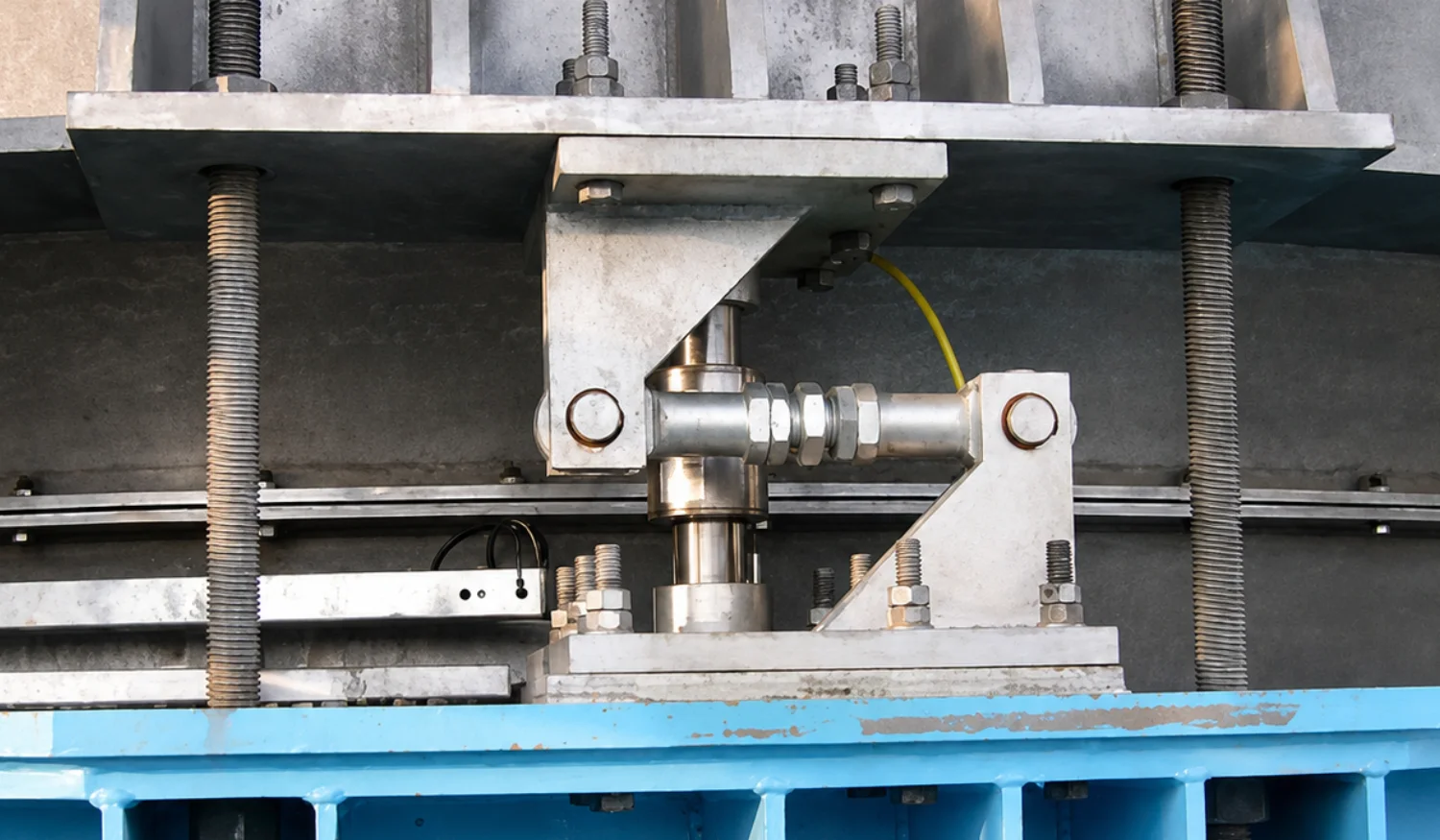

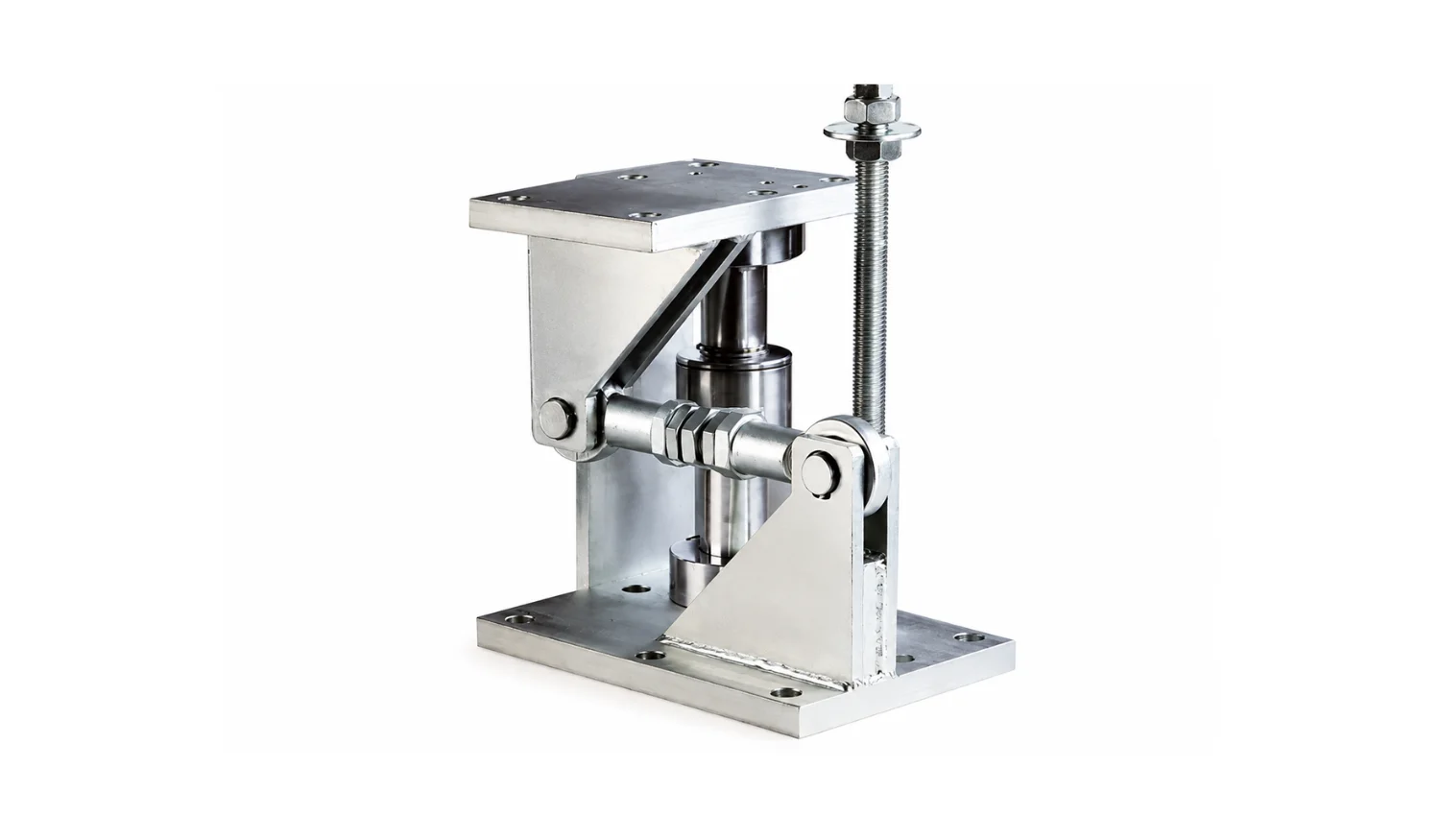

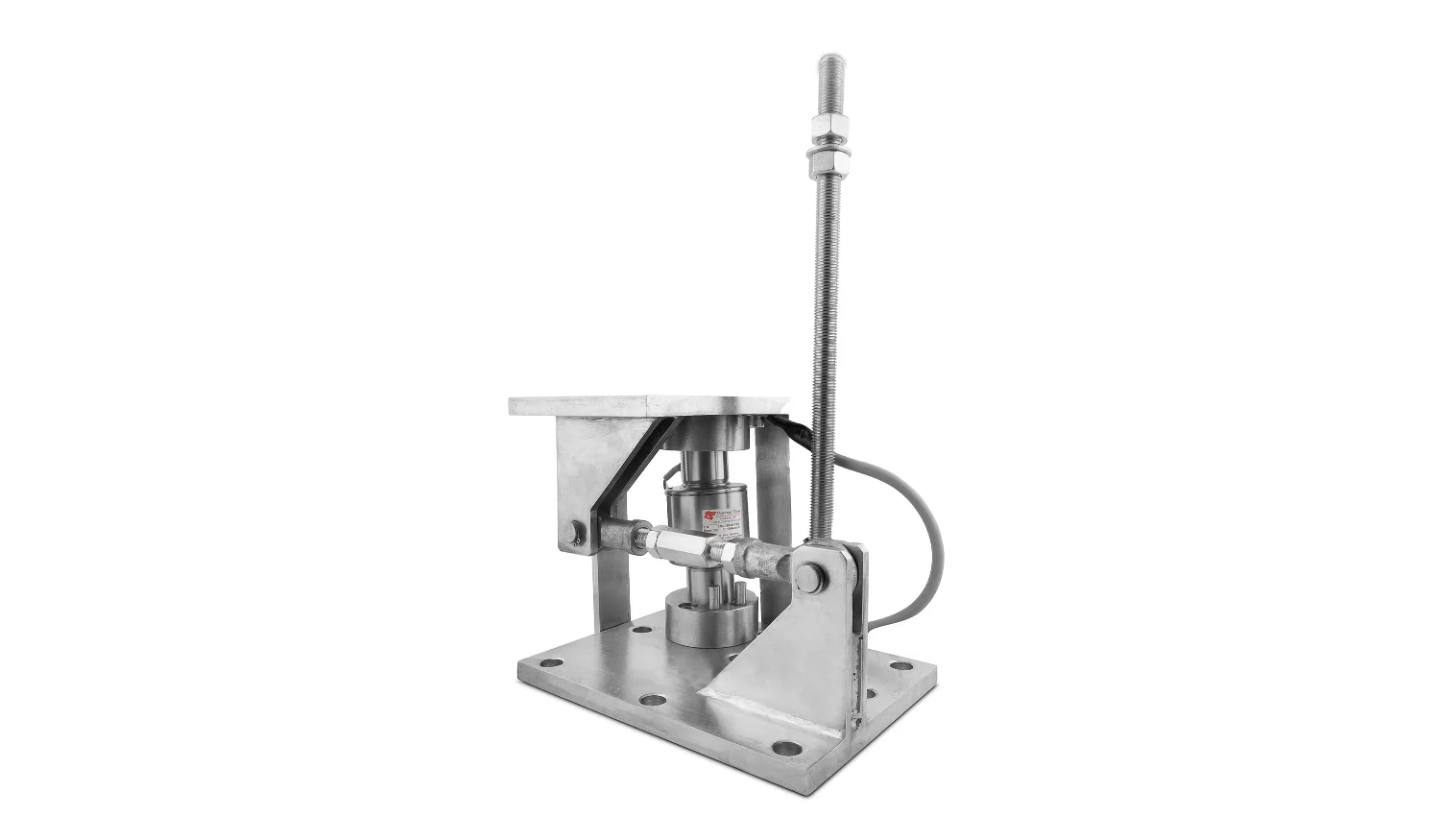

Gallery
Photo Collection
