Thames Side XT1000 Indicator & Transmitter
Boost weighing performance with the Thames Side XT1000, a high-speed digital weight indicator and transmitter built for panel mounting, fast response, and advanced connectivity. Ideal for industrial automation, process control, and dynamic weighing. Request a quotation today for a solution tailored to your application.
Overview
High-Speed Digital Weight Indicator and Transmitter for Industrial Weighing
The Thames Side XT1000 Indicator / Transmitter is a high-speed panel-mount digital weight indicator and weight transmitter designed for demanding industrial weighing applications.
With 2400 measurements per second and 24-bit resolution, it delivers fast, accurate weight data for both static weighing and dynamic weighing.
Its multiple fieldbus options support seamless integration with PLCs, SCADA systems, DCS, and industrial automation platforms.
The XT1000 is well suited for checkweighing, batching, process control, force measurement, load cell monitoring, and weighbridge systems.
Engineered for reliability, it offers precise signal processing, strong noise immunity, and dependable operation in harsh manufacturing, packaging, logistics, and process industry environments.
ZFA supplies the Thames Side XT1000 for projects across Egypt, the UAE, Saudi Arabia, Sudan, Libya, Oman, Qatar, and the wider GCC region, helping customers improve productivity, traceability, and control.
Specifications
Technical specifications
Type
Indicator / Transmitter
Mounting
Panel mount
A/D converter
24-bit
Internal resolution
16,000,000 divisions
Measurement speed
2,400 / second
Display
6-digit red LED, 10mm
Power supply
10 – 28 V DC
Load cell support
8 × 350 Ω or 16 × 700 Ω
Digital inputs
3 Ă— opto-isolated
Digital outputs
3 Ă— opto-isolated
Serial (standard)
RS-232C, RS-485
Protocol (standard)
MODBUS RTU / ASCII
Optional fieldbus
Analogue, Profibus, PROFINET, EtherNet/IP
Metrology approval
OIML R76
Legal for trade
EN 45501:2015 (NAWI)
Key features
What makes the Thames Side XT1000 Indicator & Transmitter.
24-bit A/D converter with 16,000,000 internal divisions for high resolution
2,400 measurements per second for dynamic and high-speed applications
Selectable digital filters and inbuilt membrane keyboard for configuration
Selectable digital filters and inbuilt membrane keyboard for configuration
Integral checkweighing application included in all versions
Multiple units connectable on the same bus network
Calibration protection via mechanical cover or software lock
Status LEDs for tare, prefixed tare, zero, steady weight, I/O status

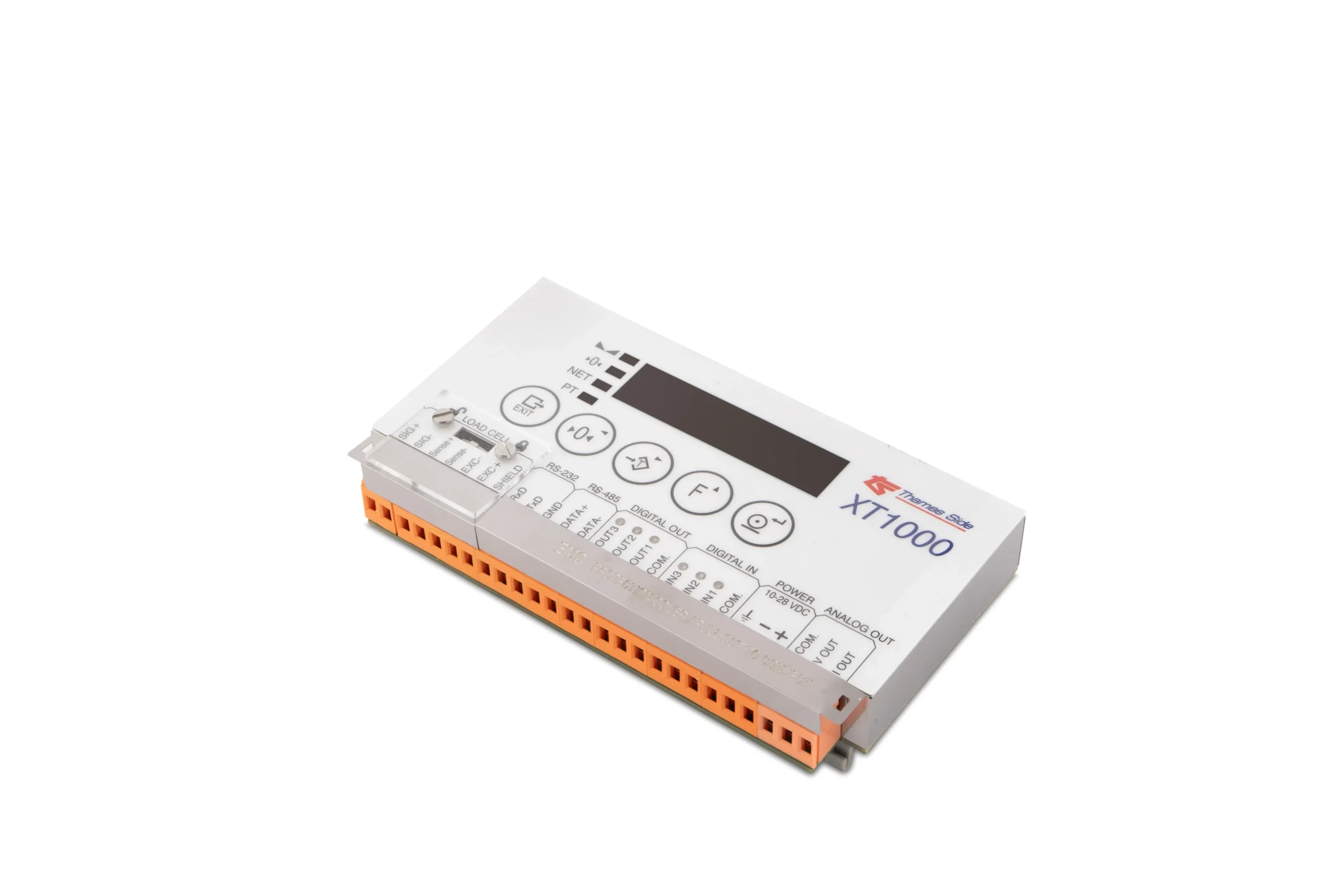

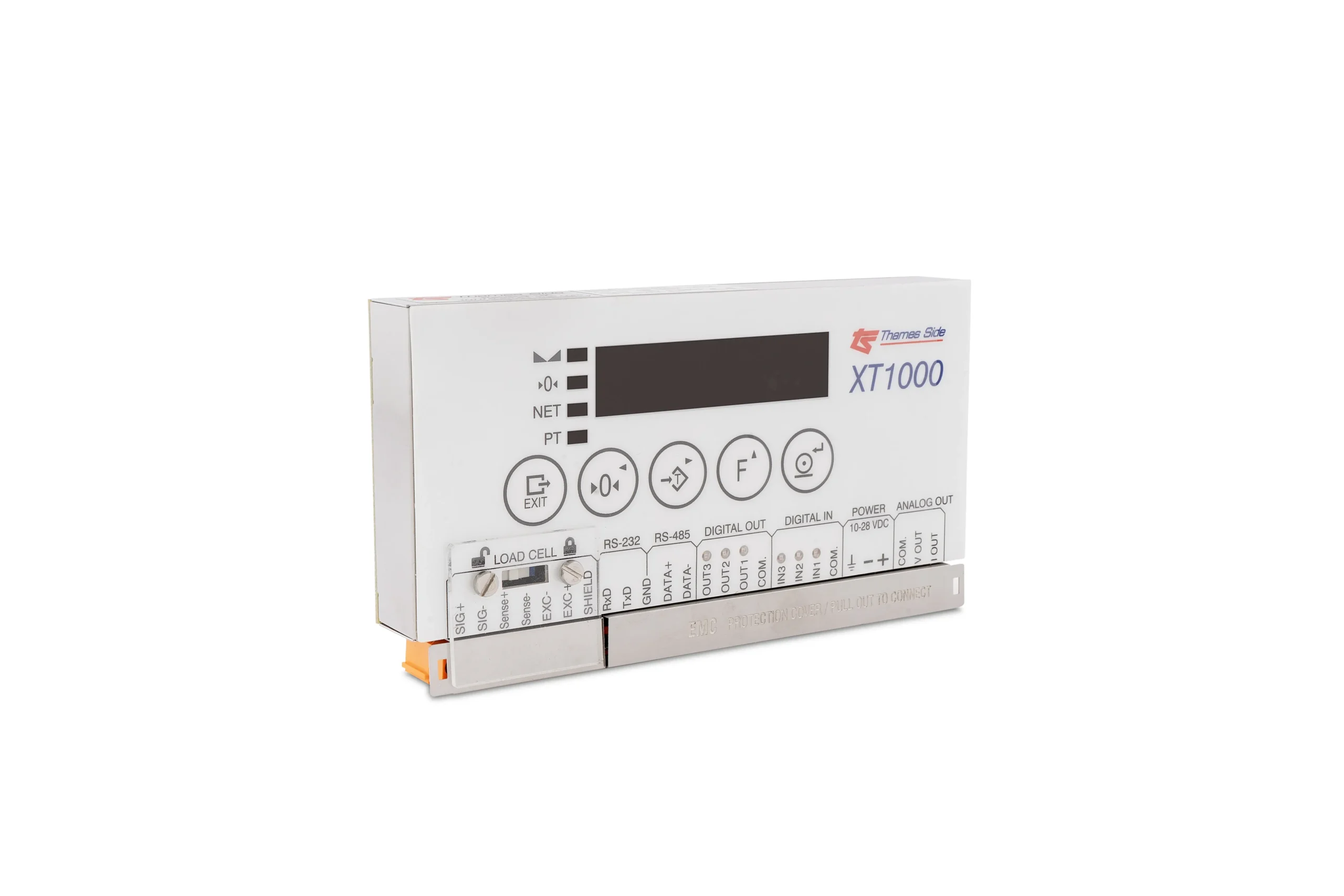

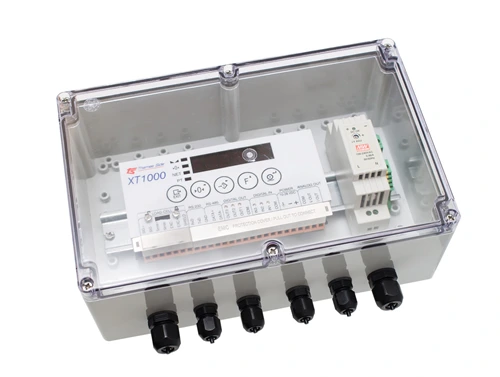

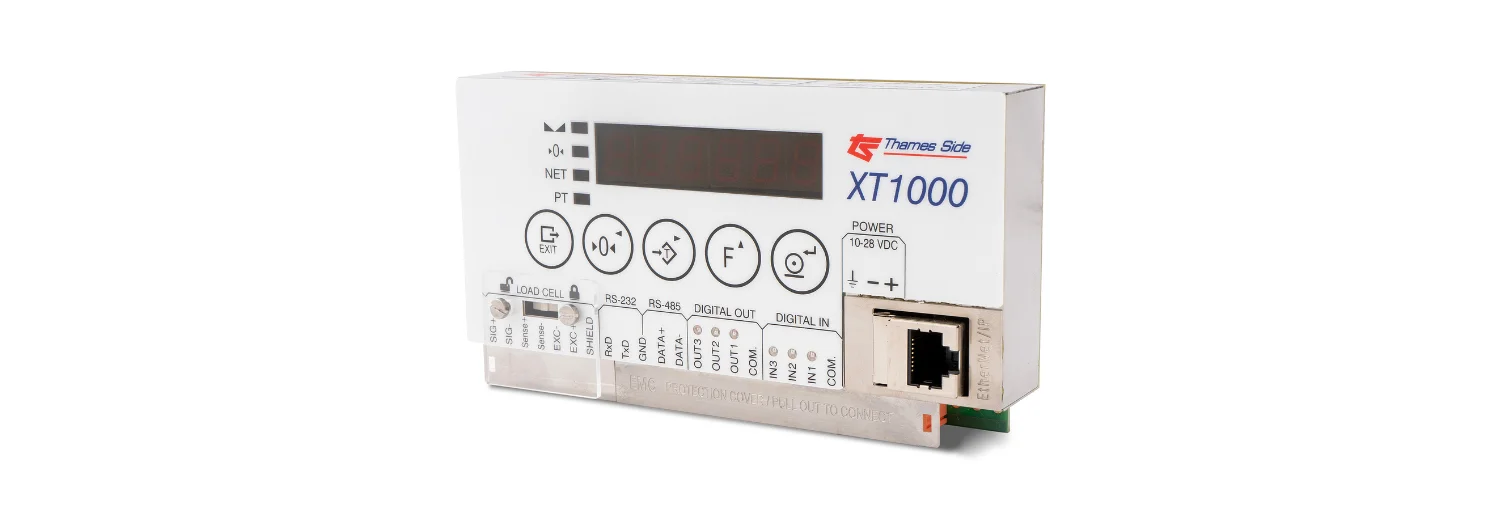

Gallery
