Thames side T85-T Shear Beam
Upgrade your industrial weighing system with the Thames Side T85-T shear beam load cell, engineered for high accuracy, reliable performance, and demanding legal-for-trade applications. Request a proven stainless steel solution built for harsh environments and fast platform scale integration.
Overview
High Accuracy Shear Beam Load Cell for Platform Scales

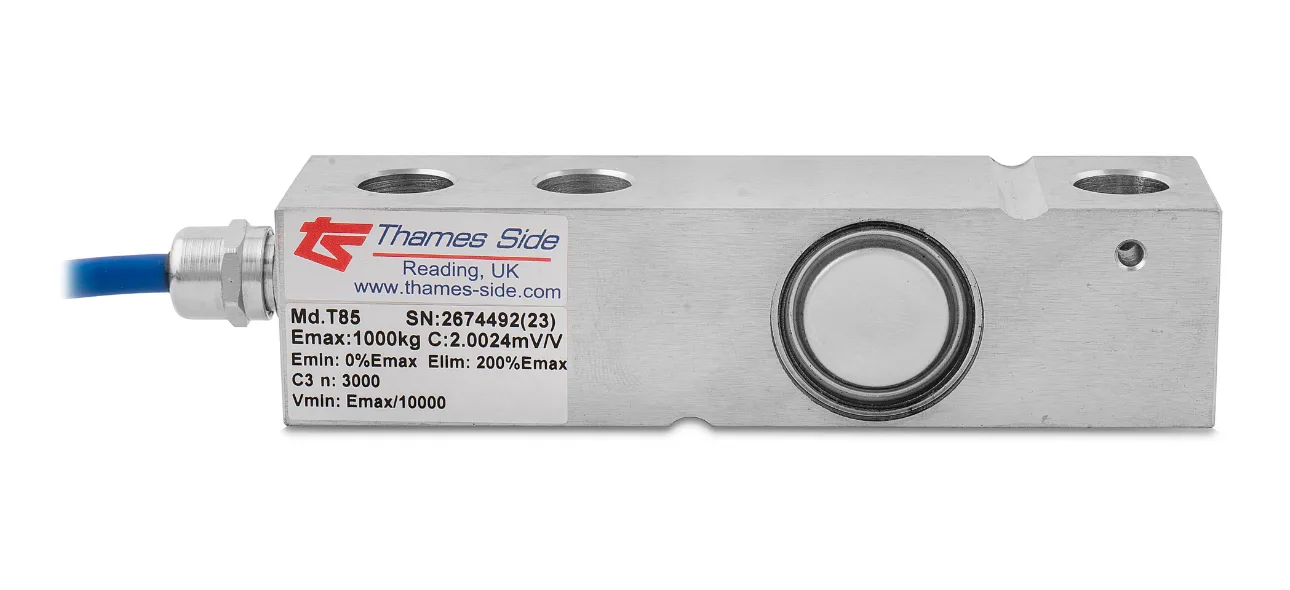

The Thames Side T85-T shear beam load cell is a high-accuracy stainless steel solution for industrial weighing, combining robust construction with dependable metrology performance. Fully welded and hermetically sealed, it is designed for platform scales, process weighing, and demanding environments where long-term stability matters.
With a capacity range from 300 kg to 10,000 kg, the T85-T supports legal-for-trade applications and complies with OIML R60 and EN 45501. Its Class C3 accuracy, corner adjustment calibration, and pre-matched output help reduce installation time and improve platform scale setup.
Built for hazardous area use, the T85-T is ATEX certified for dust zones 20, 21, and 22, without requiring safety barriers. IP68 and IP69 protection, optional Parylene coating, and a high-temperature variant make it suitable for harsh industrial conditions across food, chemical, and manufacturing sectors.
ZFA proudly serves customers across Egypt, the UAE, Saudi Arabia, Sudan, Libya, Oman, Qatar, and the wider GCC region, delivering trusted weighing solutions where performance and reliability matter most.
Specifications
Technical specifications
Type
Shear Beam
Material
Stainless Steel
Output
mV/V
Capacity range
300 kg – 10,000 kg
Temperature range
−30 °C to +70 °C
Protection class
IP68 / IP69
Corner adj. tolerance
±0.05
Accuracy class
Class C3 (3000 div)
Metrology standard
OIML R60
Legal for trade
EN 45501
Hazardous area
ATEX
ATEX dust zones
20 · 21 · 22
Safety barriers required
No
Key features
What makes the Thames side T85-T Shear Beam.
Fully welded, hermetically sealed stainless steel construction
Pre-corner adjustment calibrated in mV/V/Ohm by output current matching
Optimised for platform scale integration — minimises corner correction setup time
ATEX certified for dust zones without needing safety barriers
Optional Parylene coating for extremely harsh environments
High-temperature variant available
Gallery

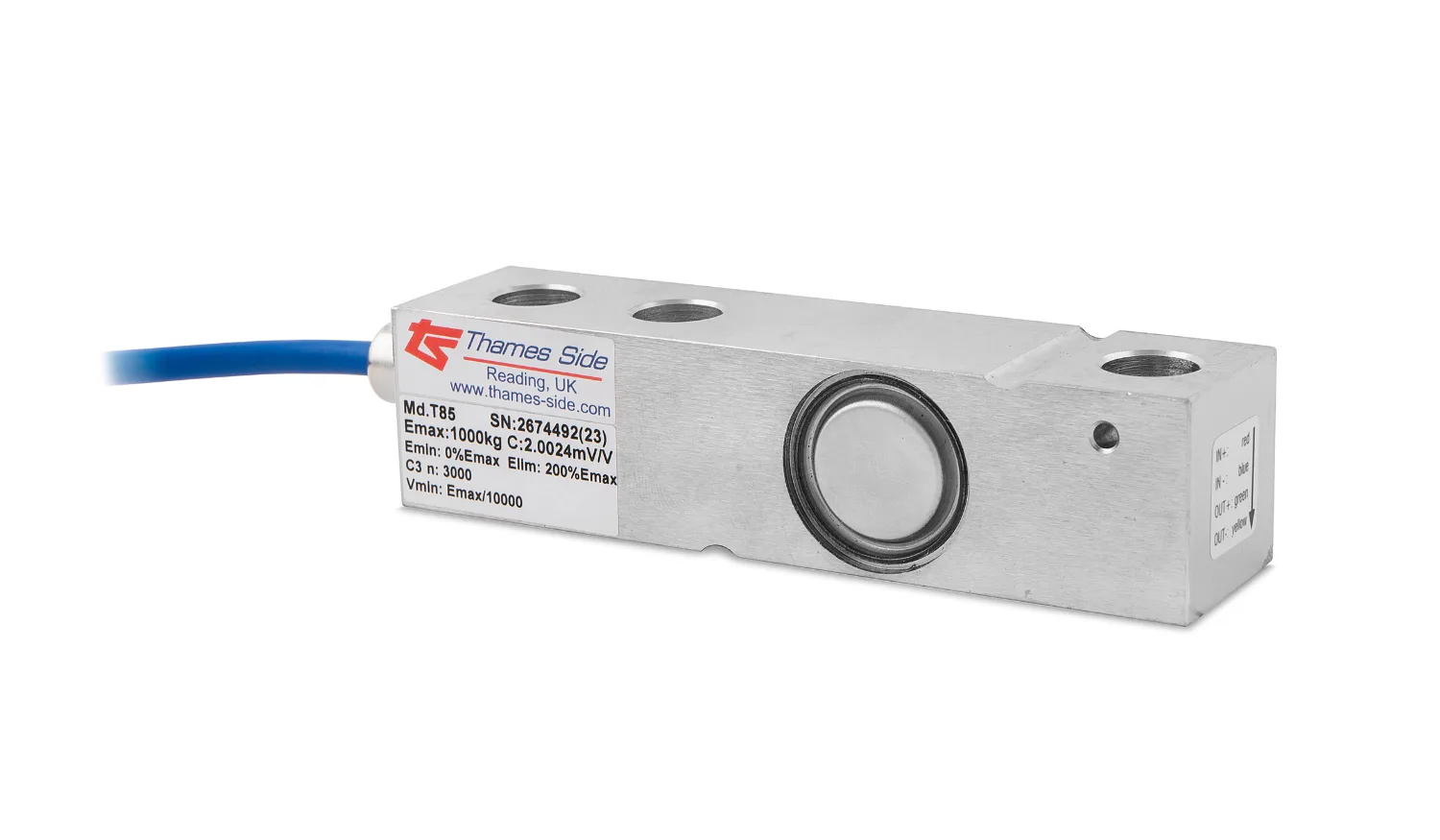

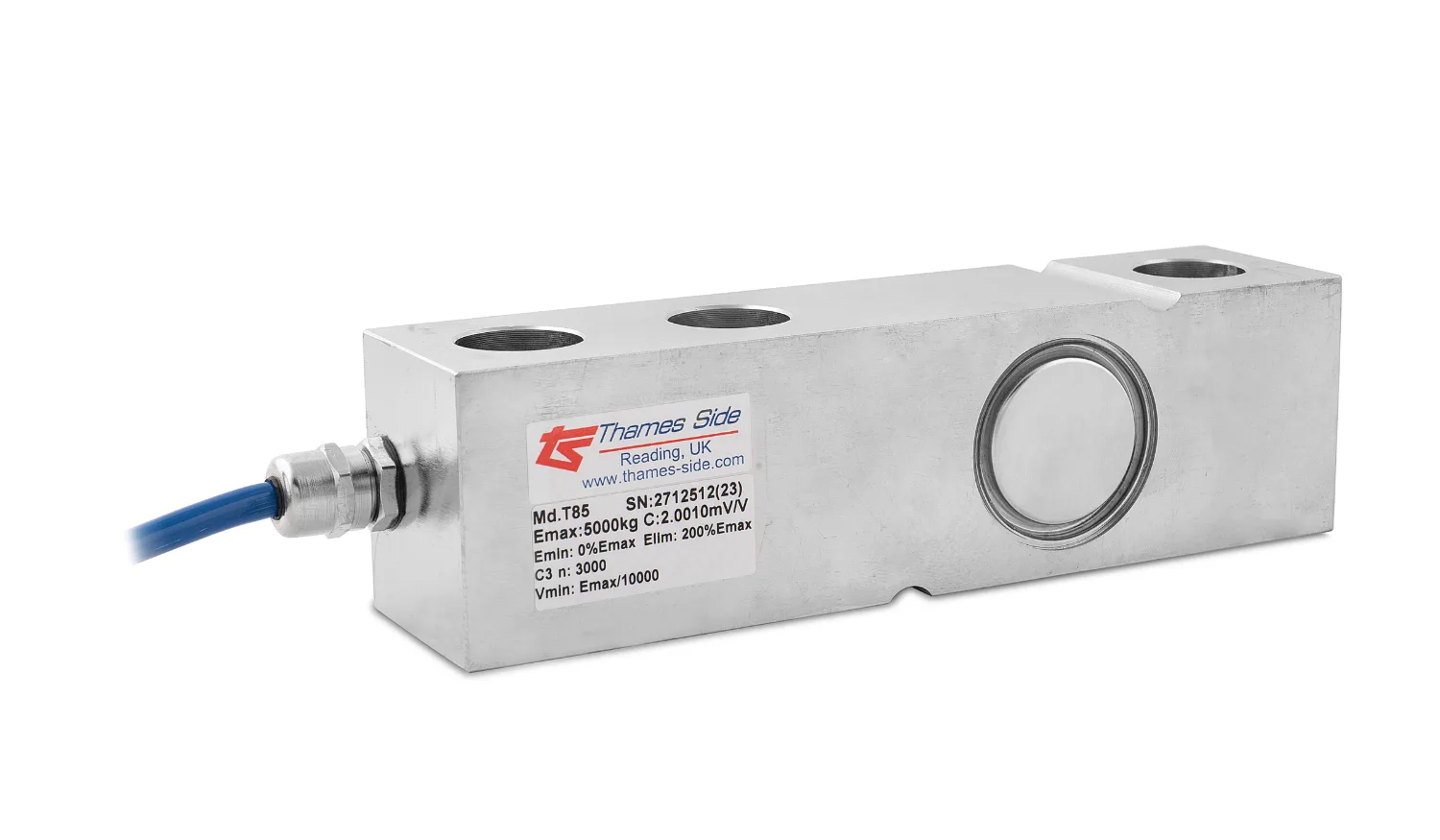

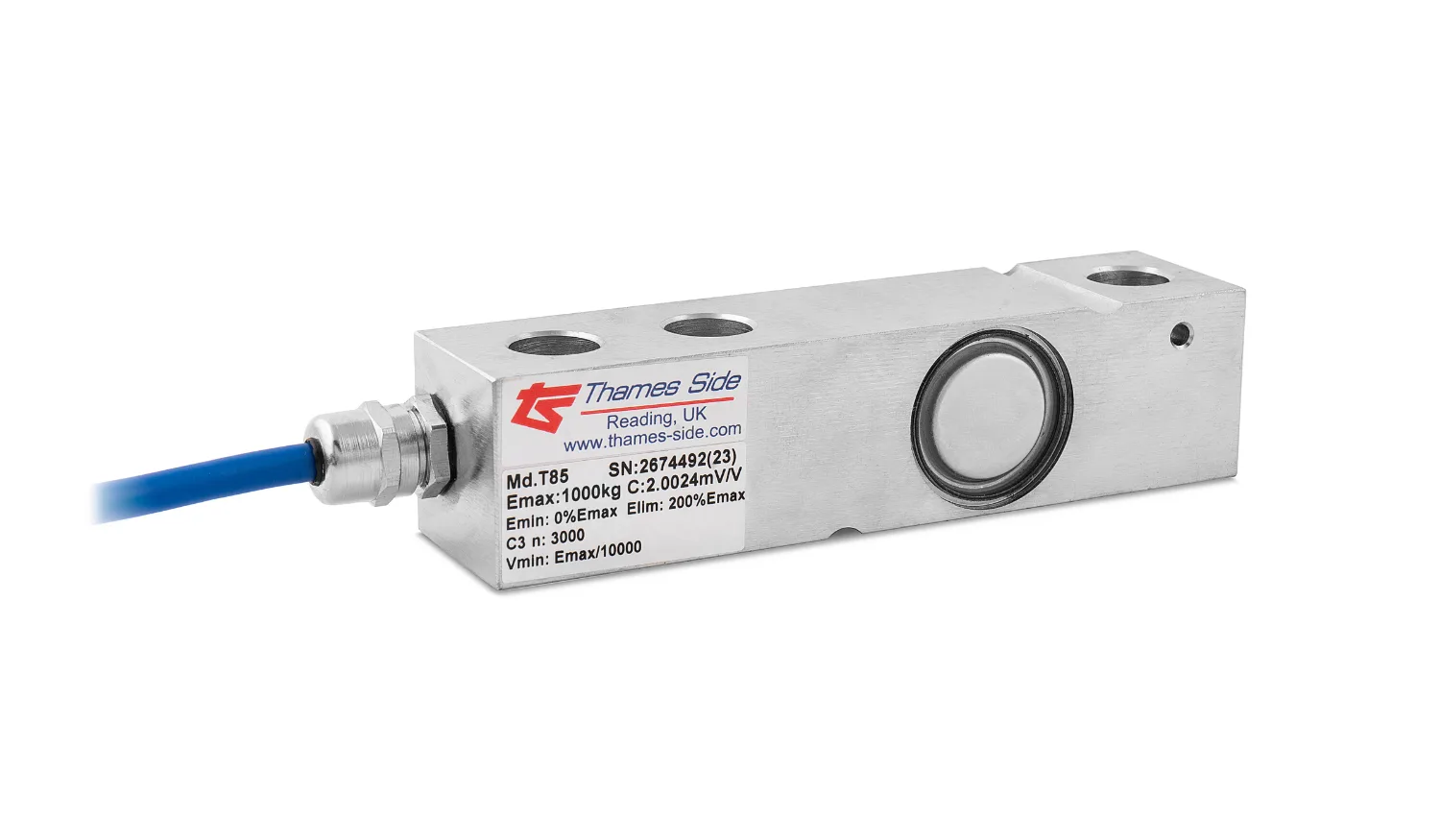

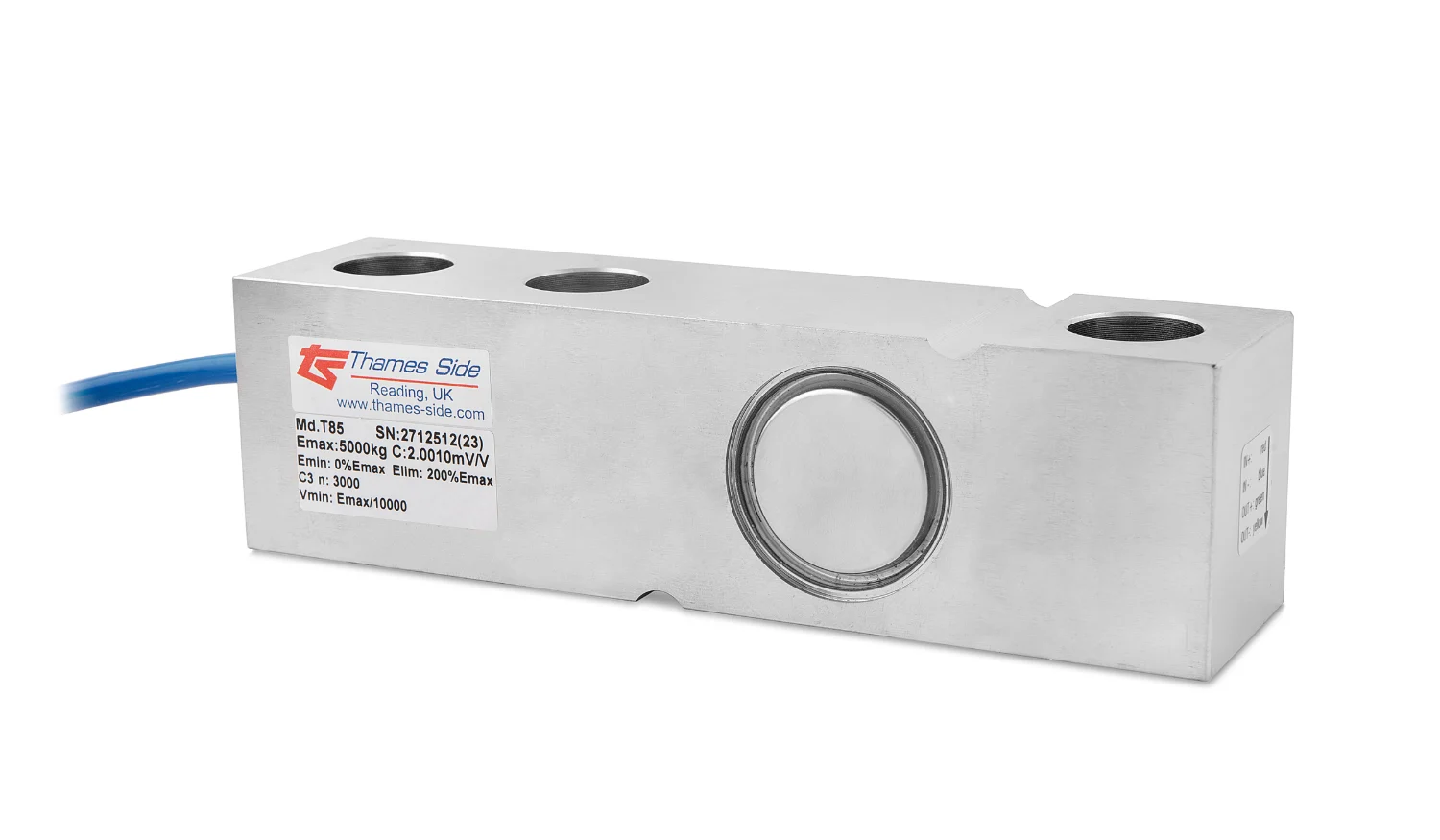

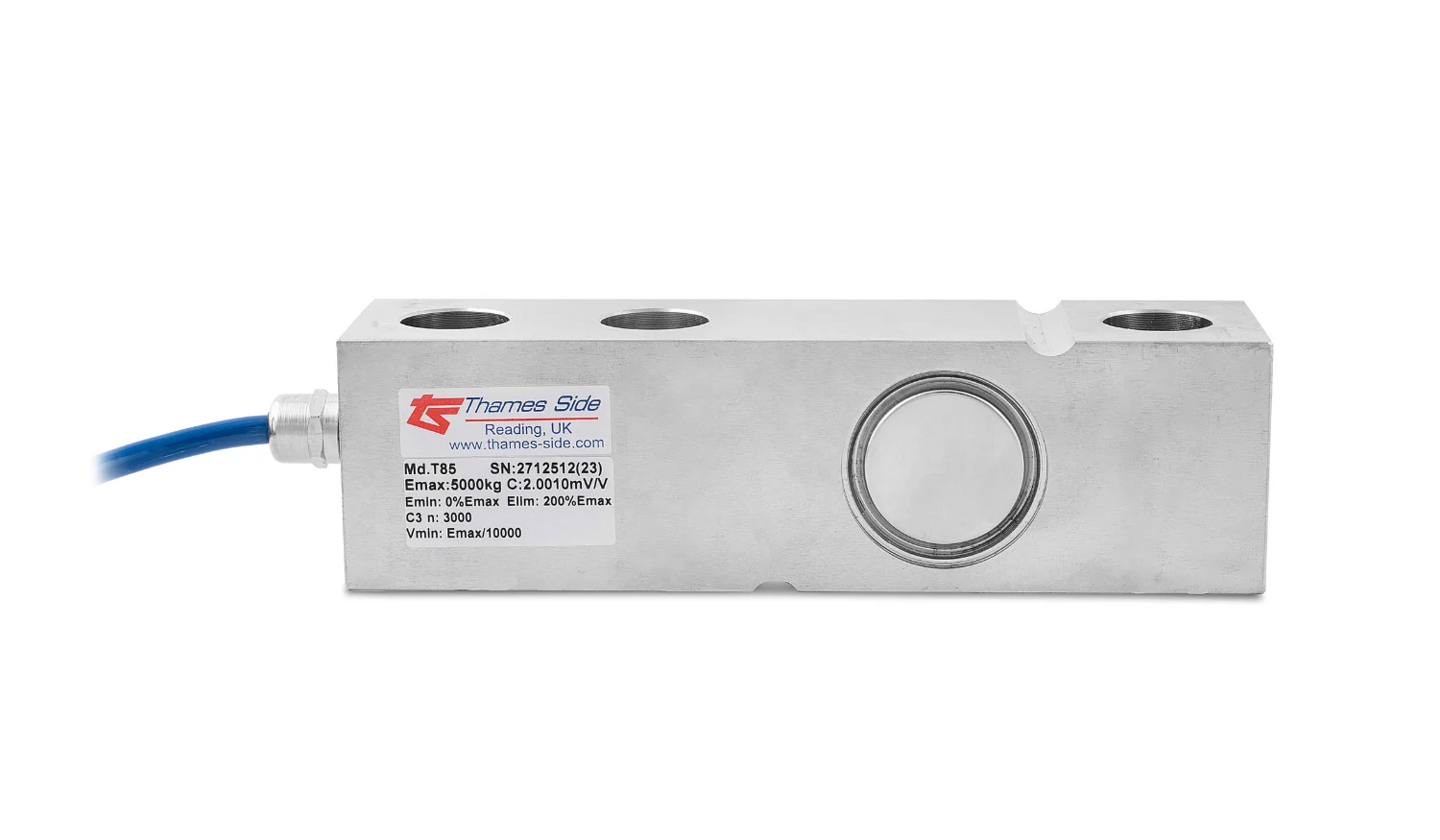

Photo Collection
