Thames Side T34 Compression Column Load Cell
Achieve precise, legally compliant weighing with the Thames Side T34 compression column load cell. Featuring a self-centering rocker column design, fully welded hermetic sealing, and high reliability in harsh and hazardous environments — the ideal solution for truck scales and weighbridges. Contact ZFA today.
Overview
Precision Compression Load Cell for Truck Scales & Weighbridges
The Thames Side T34 compression column load cell is a high-accuracy analogue load cell engineered for legal-for-trade weighing applications. Its unique self-centering rocker column design ensures accurate, repeatable weight measurement by automatically correcting off-center loading, reducing installation complexity and improving long-term performance stability.
Fully welded and hermetically sealed, the T34 delivers outstanding protection against moisture, dust, and contaminants, making it highly reliable in harsh industrial environments and hazardous area installations. Its robust stainless steel construction ensures durability and extended service life across demanding weighing applications.
Optimized for truck scales and weighbridge applications, the T34 is also suitable for silo weighing, tank weighing, and high-capacity vessel weighing systems. It supports bulk material handling, mining, logistics, agriculture, and heavy manufacturing industries requiring certified, accurate, and dependable compression load cell performance.
ZFA proudly serves customers across Egypt, the UAE, Saudi Arabia, Sudan, Libya, Oman, Qatar, and the wider GCC region with trusted T34 compression load cells built for performance and compliance.
Specifications
Technical specifications
Type
Compression Column
Material
Stainless Steel
Output
mV/V
Capacity range
10,000 kg – 1,000,000 kg
Temperature range
−50 °C to +80 °C (up to +150 °C optional)
Protection class
IP68 / IP69K
Accuracy class
Class C4 (4000 div)
Metrology standard
OIML R60
Legal for trade
EN 45501
Hazardous area
ATEX
ATEX dust zones
20 · 21 · 22
Safety barriers required
No
Key features
What makes the Thames Side T34 Compression Column Load Cell.
Self-centering rocker column design for simple and reliable installation
Fully welded, hermetically sealed stainless steel construction
Optimized pre-corner adjustment calibrated in mV/V/Ohm for faster commissioning
High accuracy with OIML C4 approval for weighbridge applications
Integrated surge protection (GDTs) for lightning resistance
Robust design with proven rotation stop mechanism
Rodent-resistant (anti-rat) polyurethane cable
ATEX certified for hazardous areas without requiring safety barriers

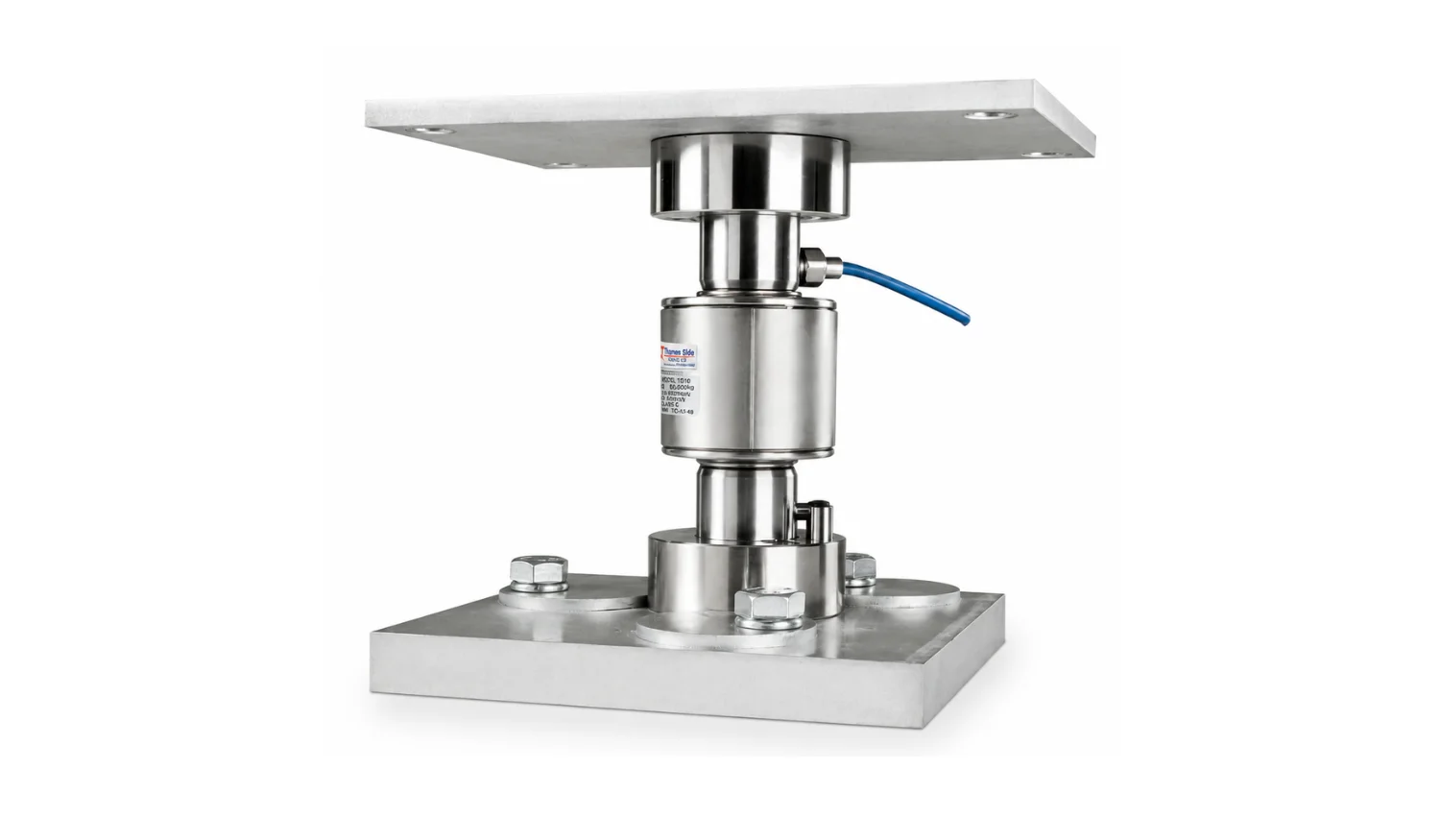

Compatible LA34 mounting assembly with mounting cups, centering discs, gasket, and sealing clip
Mounting cups available in nickel plated steel or stainless steel
Optional Parylene coating for aggressive or corrosive environments
High-temperature variant available (up to +150 °C)
Digital version (T34D) also available
Suitable for silo and tank weighing with optional mounting assembly
