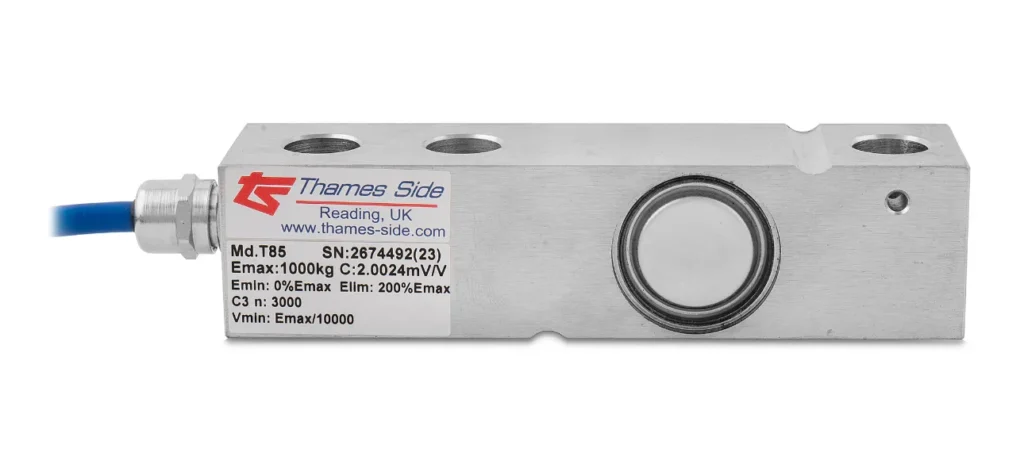

Thames side T85-T Shear Beam
High accuracy stainless steel shear beam load cell for platform scales, legal-for-trade weighing, and ATEX dust zone applications with IP68/IP69 protection.
Learn MoreShear Beam Load Cells for Industrial Weighing & Process Control
Shear beam load cells (single-ended shear beam sensors) measure force by detecting shear strain within a robust sensing element, converting it into a calibrated electrical signal.
Engineered for medium-capacity platform scales, hoppers, and process vessels, they deliver stable, repeatable weight measurements. Backed by over 17 years of experience, ZFA supplies certified shear beam load cells and engineered mounting hardware tailored to project specifications.
- Single-Ended Cantilever Design: Features a rigid beam secured at one end with load introduction at the opposite end, supporting rated capacities typically ranging from 250 kg up to 10 t per cell.
- Industrial Scales & Vessel Applications: Widely deployed in 4-cell floor scales, low-profile pallet scales, mixing hoppers, ingredient batching vessels, and conveyor weighing systems.
- Rugged Materials & Ingress Sealing: Machined from nickel-plated alloy steel or stainless steel, with IP67 to IP68/IP69K sealing against moisture, chemicals, and industrial washdowns.
- Engineered Weigh Modules & Mounts: Compatible with self-aligning feet, base plates, and weigh modules featuring side-load, lift-off, and anti-tilt protection for stable vessel weighing.
- Metrological Compliance & Connectivity: Available with OIML R60 certification (C3/C4) and standard mV/V outputs, interfacing seamlessly with summing junction boxes, weight transmitters, and PLCs.
- Regional Turnkey Engineering Support: ZFA assists with load cell selection, mounting coordination, certified calibration, and quotations across Egypt, Saudi Arabia, the UAE, and the GCC.
Models
Available models.
Q&A
Frequently Asked Questions
What is a shear beam load cell?
A shear beam load cell is a precision weighing sensor that measures force through shear deformation, making it suitable for accurate industrial weighing.
How does a shear beam load cell work?
It works by detecting strain created in the beam under compression, with strain gauges positioned to improve output and reduce rotational error.
Where are shear beam load cells used?
They are used in tank weighing, hopper weighing, silo weighing, platform scales, and process control applications.
What makes shear beam load cells different from bending beam load cells?
Shear beam load cells use shear deformation measurement, which improves accuracy and stability in many industrial applications.
What is the price of a shear beam load cell?
Price depends on capacity, material, accuracy class, and environmental protection. ZFA can provide a quotation based on your application.
Why Choose ZFA for Shear Beam Load Cells?
With over 17 years of experience, ZFA supplies and distributes weighing products from established manufacturers. We support projects for local and international companies by helping customers compare specifications and select suitable solutions for their applications.
Why Are Shear Beam Load Cell Mounting Kits Important?
Mounting kits help secure the load cell and transfer loads correctly. Choosing a compatible kit supports reliable measurements and helps manage unwanted forces during operation.
